Sigma

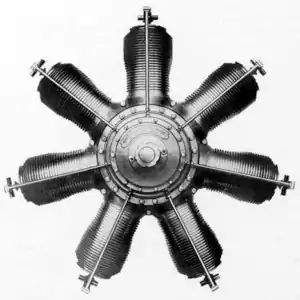

Gnome 7 Sigma as shown in a 1913 Gnome catalog
Type Rotary aero engine
National origin France
Manufacturer Société des Moteurs Gnome

The Gnome 7Σ Sigma (commonly called the Gnome 60 hp) is a French seven-cylinder, air-cooled rotary aero engine.[1]

The Sigma produced 60 hp (45 kW) from its capacity of 9.5 L (579.73 cu in).

Specifications (7 Sigma)

Longitudinal elevation of Gnome 7 Sigma, from 1913 Gnome catalog

Data from Société Des Moteurs Gnome[2]

General characteristics

  • Type: 7-cylinder, single-row, rotary engine
  • Bore: 120 mm (4.72 in)
  • Stroke: 120 mm (4.72 in)
  • Displacement: 9.5 L (579.73 cu in)
  • Length: 1,125 mm (44.29 in)79 cm (31 in)
  • Diameter: 826 mm (32.52 in)
  • Dry weight: 79 kg (174 lb)

Components

  • Valvetrain: pushrod operated overhead exhaust valves plus pressure-driven inlet valves located in the piston crowns[3]
  • Fuel system: a single static Bloctube carburretor feeding the crankcase
  • Fuel type: 40 / 50 octane gasoline
  • Oil system: pressure-fed total loss, castor oil
  • Cooling system: Air-cooled
  • Reduction gear: Direct drive, right-hand tractor, left-hand pusher

Performance

  • Power output: 45 kW (60 hp) at 1,200 rpm

See also

Comparable engines

Related lists

References

Notes

  1. ↑ National Air and Space Museum - Gnome Omega Retrieved: 11 November 2010.
  2. ↑ Moteurs Gnome (PDF) (in French). Paris: Société Des Moteurs Gnome. October 1913. pp. 6–10. Retrieved 26 June 2018.
  3. ↑ Nahum, Andrew (1999). The rotary aero engine. London: Science Museum. pp. 12–14. ISBN 1-900747-12-X.
  4. Murphy, Justin D. (2005). Military aircraft, origins to 1918 : an illustrated history of their impact. Santa Barbara, Calif. [u.a.]: ABC-CLIO. pp. 32–33. ISBN 1-85109-488-1.
